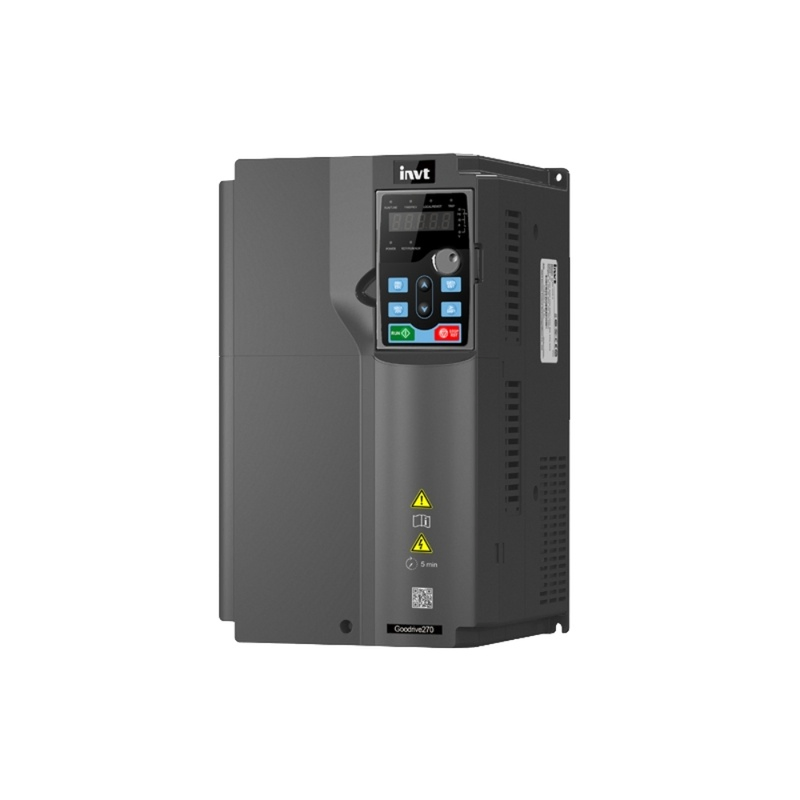

The GD270-5R5-4 Fan Pump VFD Frequency Converter Unit is a high-performance industrial control product designed to optimize motor performance and energy efficiency. Engineered specifically for fan and pump applications, it offers advanced control capabilities, exceptional energy savings, and robust reliability.
Sophisticated V/F and sensorless vector control (SVC) algorithms for accurate speed regulation.
Integrated technology optimizes output voltage in real-time based on load demand.
Built-in guards against overcurrent, overvoltage, undervoltage, and phase loss.
| Feature | Specification |
|---|---|
| Model | GD270-5R5-4 |
| Power Rating | 5.5 kW / 7.5 HP |
| Input Voltage | 3-Phase, 380-480V AC |
| Output Voltage | 0-480V AC |
| Output Current | 13 A |
| Output Frequency | 0-400 Hz |
| Control Mode | V/F Control, Sensorless Vector Control (SVC) |
| Overload Capacity | 110% of rated current for 1 min |
| Enclosure Rating | IP20 |
Installation: Mount on walls or in control cabinets with adequate ventilation. Proper grounding is mandatory for safety.
Operation: Use the keypad interface for parameter settings. Utilize built-in application macros for faster setup.
Precautions: Always disconnect power before wiring. Derate output capacity if ambient temperature exceeds 40°C.
